Gear pumps

Steimel gear pumps convey media such as paints, varnishes, chocolate, oils, bitumen and fats precisely and continuously – even under demanding conditions. They are robust, low-maintenance, versatile and available in ATEX versions.

SCROLL

Technical specifications

Flow rate

up to 85 m³/h

Pressure increase / Overpressure

up to 25 bar

Temperature range

up to 200°C

Viscosity range

up to approx. 100.000 mm²/s

Heating

from size SF8

Pressure relief valve

Optionally available without

ATEX area

Yes

Applications

Steimel gear pumps are used in a wide range of applications. They are ideal for pumping media with sufficient lubricity and without solid particles. Thanks to our flexible manufacturing and many years of experience, we can provide tailor-made solutions – precisely tailored to your individual requirements. Below you will find an overview of typical areas of application.

Pumps for paints, varnishes and coatings

Pumps for cocoa mass and chocolate

Pump technology for oils, greases and lubricants

Customised pumps for special media

Pumps for bitumen and bitumen grouting compounds

ATEX pumps for potentially explosive atmospheres

Types

Steimel gear pumps are used in numerous industrial applications. Below is an overview of the respective pump types, suitable for different areas of application.

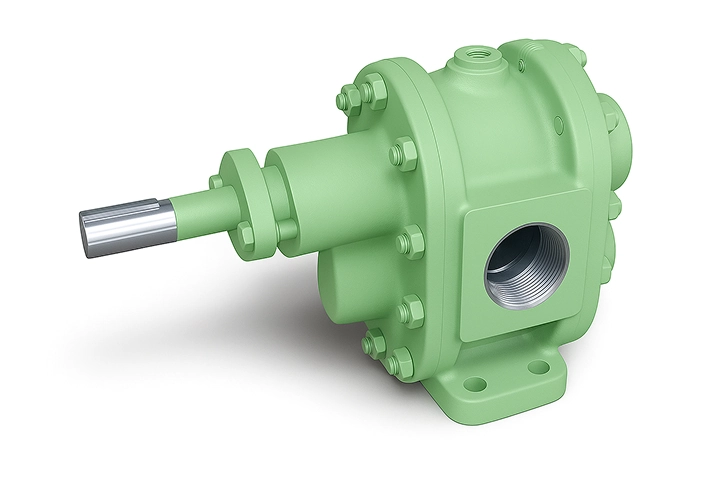

Type T

With the gear pumps of the T series, we offer a range of several variations and designs for pumping almost all pumpable media.

key data

Flow rate: 15 - 1,800 cm³ / revolution
Permissible overpressure: up to 16 bar (higher pressures on request)
Viscosity range: up to approx. 100.000 mm²/s

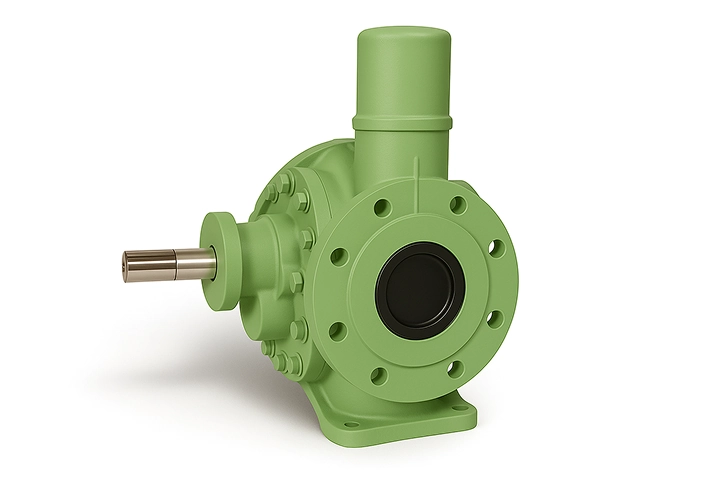

Type TF

The lubrication and feed pumps in the TF series are particularly suitable for pumping all media that guarantee minimum lubricity and do not contain any solids.

key data

Flow rate: 80 - 1,000 cm³ / revolution
Permissible overpressure: up to 25 bar (depending on size)
Viscosity range: up to approx. 50,000 mm²/s

Type SF

The lubrication and feed pumps of the SF series are particularly suitable for pumping media that do not contain solids, ensure minimum lubricity and are chemically compatible.
