Centrifuge overview

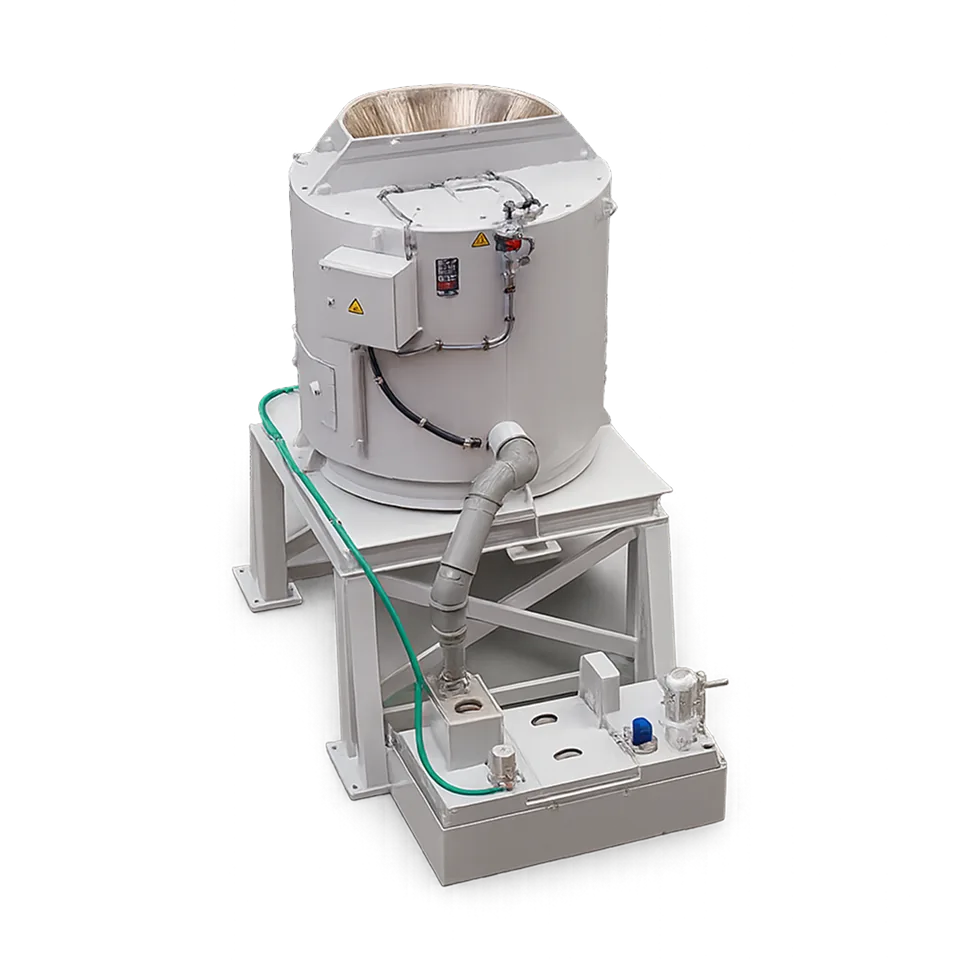

Continuous centrifuges

These centrifuges are designed for industrial applications with continuous material feed. Unlike batch centrifuges, they operate without interruption: material is fed in via conveyor technology and discharged directly into conveyors or containers. Continuous systems in combination with conveyor technology and chip breakers are particularly impressive in chip processing with uniform material and cooling lubricant – for efficient separation, minimal residual moisture and high-performance disposal in continuous operation.

SCROLL

Technical specifications

Throughput

0.2 — 10 m³/h (depending on type of chip and model)

Drum speed

735/980/1400 rpm

Drum diameter

400 — 1000 mm

Residual moisture

2 - 5% (depending on material)

Special features

High wear resistance due to manganese steel, compact design, optional heating, continuous and fully automatic operation

Applications for swarf processing

In the following, we present two key applications in which our technology helps to increase efficiency and conserve resources.

De-oiling

Reliable removal of lubricants, emulsions and oil films that have been applied to metal chips during production — a frequently necessary preparation step for subsequent thermal or chemical further processing. You also benefit from higher recycling revenues and significantly reduced disposal costs — thanks to simple and secure logistics.

Coolant recovery

Efficient recovery of coolants from oily or moist metal chips — to significantly reduce residual moisture. dThe recovered media can be reused directly or recycled — for sustainable, environmentally friendly and cost-effective production.

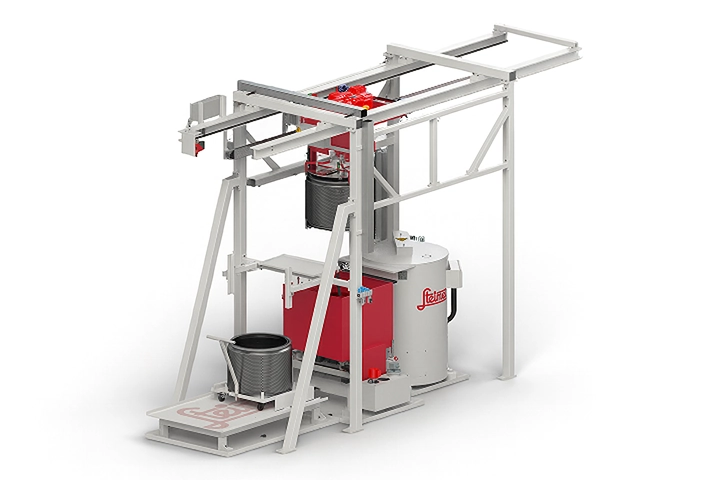

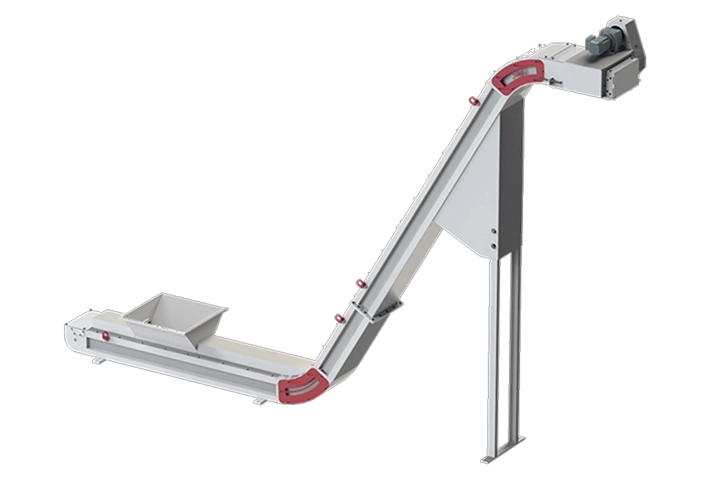

Extension for automation

Below you will find products for automating continuously operating centrifuge systems — specifically developed to make processes more efficient and economical.
